Pool Pump Troubleshooting: Diagnose and Fix Common Problems
Pool pump troubleshooting starts with one question: what is the pump actually doing right now? A silent pump has different causes than a humming pump, a leaking pump, or a pump that runs but moves no water. We organized this guide around symptoms so you can find the right fix in under a minute. Welcome to pool care help.
Video guide
Video: “POOL PUMPS 101: How They Work and Troubleshooting Tips” by Swim University
.. / this guide isn’t for you if..
** your pump:**
- Won’t start or turn on at all
- Hums or buzzes but the impeller won’t spin
- Runs but produces no water flow
- Loses prime during operation
- Has water dripping from the pump body
- Makes grinding, screeching, or rattling sounds
- Is sending air bubbles back through the return jets
This guide isn’t for you if you’re dealing with:
- Green or cloudy water chemistry problems (see our pool chemistry guide)
- High filter pressure after normal pump operation (that’s a filter issue)
- Pool heater troubleshooting (heater not heating, error codes)
Diagnose your pump problem (decision tree)
Find your symptom below and go directly to the right guide:
| Symptom | Most Likely Cause | Go To |
|---|---|---|
| Pump is silent, no sounds | Tripped breaker, bad capacitor, wiring issue | Pool Pump Not Turning On |
| Pump hums or buzzes, impeller won’t spin | Failed start capacitor | Pool Pump Humming or pool pump capacitor symptoms |
| Pump runs, basket stays empty, no flow | Not primed or air leak | Pool Pump Not Priming or Pool Pump Not Pulling Water |
| Pump runs then loses prime after a few minutes | Air leak on suction side, low water level | Pool Pump Losing Prime |
| Water dripping from pump body or fittings | O-ring, union fitting, or shaft seal | pool pump leaking water |
| Grinding, screeching, or rattling sounds | Bad bearings, debris in impeller | Pool Pump Making Noise |
| Tiny bubbles streaming from return jets | Air entering suction side | Pool Pump Air Bubbles |
A pool pump that hums but won’t spin has a failed start capacitor in the majority of cases. Replacing the capacitor costs $15-$40, a fraction of the $200-$600+ motor replacement cost.
Pool pump won’t start or turn on
A dead pump, no sound, no movement, nothing, usually has one of four causes: the circuit breaker tripped, the timer is faulty, the start capacitor failed silently, or the thermal overload tripped from overheating.
The first check is always the breaker panel. If the breaker is tripped, reset it once. If it trips again immediately, stop, that signals a short or motor fault. If the pump still does nothing after resetting, check whether the timer is in an “on” window.
This section is for you if: The pump is dead with no humming sound.
Not this: If you hear humming, see the humming section below.
Read the full diagnosis at Pool Pump Not Turning On.
Pool pump humming but not spinning
A pool pump that hums loudly but never circulates water is receiving power but can’t start rotating. In our experience diagnosing hundreds of residential pool pump calls, a failed start capacitor is the cause well over 80% of the time. The capacitor provides the electrical jolt needed to spin the motor from a standstill, when it fails, the motor buzzes in place.
The good news: start capacitors cost $15-$40 and replacing one is a beginner-level repair. The bad news: if you ignore the hum and keep trying to start the pump, you’ll overheat the motor windings and turn a cheap capacitor repair into a $200-$600 motor replacement.
This section is for you if: Pump makes a humming or buzzing sound but impeller never spins.
See pool pump capacitor symptoms for specs and testing, then Pool Pump Humming for the full diagnosis.
Pool pump not priming or losing prime
Priming is the process of filling the pump with water to create suction. Without prime, the impeller spins in air and moves nothing. There are two distinct scenarios here.
Never primes (new startup or after service): Water never enters the pump basket, pressure gauge stays at zero. This is an air leak, a clogged basket, or water level too low at the skimmer.
Loses prime (was working, stops after a few minutes): The pump starts normally but prime drops after running. Air is entering the suction side from somewhere, a cracked fitting, a dried-out basket lid O-ring, or a low pool water level.
The basket lid O-ring is the most overlooked cause of prime loss. We’ve seen a $2 O-ring with a dab of Magic Lube fix what looked like a complex plumbing problem.
If your pump fails to start or trips the breaker, consult the troubleshooting guide at Pool Pump Not Priming. For setting up, walk through the detailed steps in Pool Pump Priming, particularly relevant if you’re installing a new Pentair 2500PSI unit.
Pool pump leaking water
Pool pump leaks fall into two zones: the wet end (pump body and impeller area) and the plumbing connections (union fittings and PVC joints). Knowing which zone the water is coming from determines the repair.
A drip from the basket lid seam is a dried O-ring, the easiest fix in pool equipment. Water at the junction between the pump body and the motor typically means a failed shaft seal, which is more involved but still a DIY repair ($10-$30 for parts).
This section is for you if: You see water dripping, pooling, or spraying from anywhere on the pump assembly.
Diagnose the source at pool pump leaking water, then follow detailed seal steps at Pool Pump Seal Replacement.
Pool pump making noise
Abnormal pump sounds each point to a different internal failure:
- Grinding or metal-on-metal sound: bearing failure, motor likely needs replacement or professional rebuild
- Screeching or high-pitched squeal: early bearing failure or shaft seal wearing against motor
- Rattling or clicking: debris caught in impeller. Usually clears after shutting down and clearing the basket
A faulty motor’s grating or screeching signals imminent failure. Pool pump units generally endure 8 to 12 years of service. Given a motor that’s surpassed its decade mark and produces such sounds, it’s smarter to replace the unit rather than invest in repairs.
Full noise diagnosis at Pool Pump Making Noise.
Air bubbles in pool jets
If tiny bubbles are streaming from the return jets while the pump runs normally, the pump is pulling air somewhere on the suction side. Air bubbles aren’t a water leak, the pump is working, but air is mixing with water before it reaches the impeller.
Common sources: a dry or cracked basket lid O-ring, loose union fitting on the suction line, a cracked PVC fitting, or skimmer weir stuck in the up position. The shaving cream test pinpoints the source fast: apply foam to each joint while the pump runs, and watch for foam that disappears into the fitting.
Full diagnosis at Pool Pump Air Bubbles.

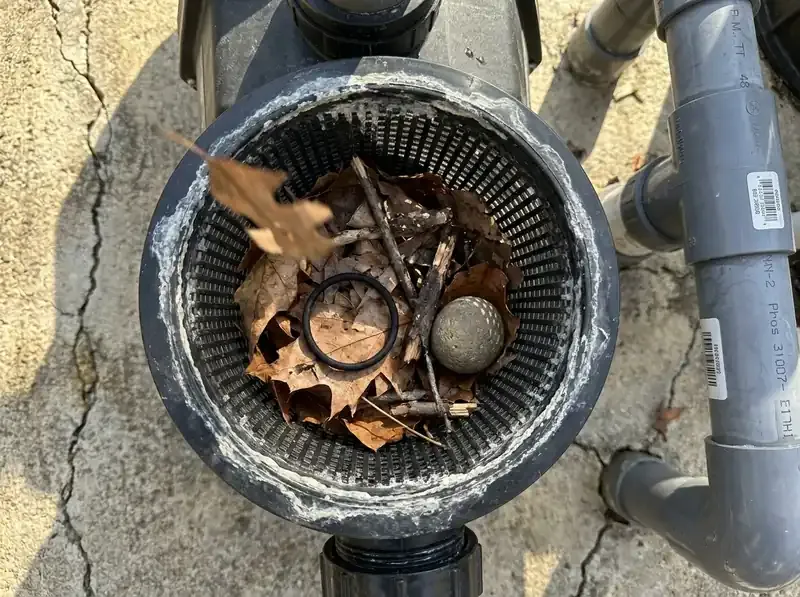

A pump basket after one week of skipped skimming. Debris in the basket is the most common single cause of low return-jet pressure, ahead of impeller blockage and filter cleanliness in Hayward’s field-tech tally.
Variable speed pump upgrade
If your single-speed pump keeps failing, or if you want to prevent the next repair cycle, consider a variable speed pump upgrade. Variable speed (VS) pumps use permanent magnet motors that run at lower RPMs for routine circulation and only ramp up for backwashing or cleaning cycles.
VS pumps consume 60-80% less electricity than single-speed models, require no start capacitor prone to failure. The U.S. Department of Energy estimates that variable speed pumps can save over $500 annually on energy costs in certain climates. They adhere to EPA WaterSense standards and are mandated for new pool installations in some states.
When to Call a Pro
Most pool pump problems, capacitors, O-rings, seals, basket cleaning, are genuine DIY repairs. But a few situations call for a licensed professional:
- Electrical panel work beyond breaker reset: Any wiring inside the panel, subpanel, or running new conduit
- Motor rewinding: Rarely cost-effective; replacement is almost always cheaper
- Underground plumbing leak: Requires excavation. Not a DIY repair usually
- Any leak near motor electrical connections: Water + electrical connections = electrician, not pool DIY
- Permit-required work: Check local codes for requirements in your jurisdiction
For general pool safety guidelines, including equipment area safety, the Pool Safely campaign from the CPSC has updated resources.
How we wrote this guide
PoolCareHelp doesn’t republish pool-store talking points. Each guide is cross-referenced against primary chemistry and equipment sources before publishing. For this article we consulted:
Same again.
- Hayward Super Pump and IntelliFlo VS troubleshooting manuals, source for the air-leak triangle and prime-loss diagnostics
- Pentair IntelliFlo VS owner documentation, source for variable-speed RPM and runtime guidance
- TroubleFreePool pump-prime and air-leak threads, source for field-verified DIY diagnostics
Editorial decisions we made for this guide:
- We diagnose suction-side problems (no prime, air in jets) before pressure-side (leaks, low flow) because suction issues usually mask pressure-side symptoms
- We document the air-leak triangle (lid o-ring, drain plug, suction-side joint) explicitly because the generic “check the pump” advice in most articles skips the order-of-operations
- We recommend variable-speed upgrades only when the existing single-speed pump fails, not as a routine swap, because the ROI depends on local electric rates and runtime
Last reviewed by Tom Hill on 2026-05-28. If you find an error or a newer source we should reference, see About for how we issue corrections.
FAQ
How long do pool pump motors last?
Pool pump motors typically last 8-12 years with proper maintenance. Heat, chemical exposure, and running the pump dry all shorten motor life. Most common failures, capacitors, seals, and basket O-rings, are DIY repairs that cost under $50 and extend motor life significantly.
How much does pool pump repair cost?
Replacing pool pump parts spans from minor to significant expenses. Start with a mere $3-$8 basket lid O-ring if it’s causing trouble. Often, it just needs changing. Moving on, inspect the start or run capacitor, priced around $15-$40, which frequently trips the breaker upon failure. A shaft seal may also fail, costing roughly $10-$30, especially with visible water leakage. Check the union fitting O-ring too, perhaps as cheap as $5 yet essential for leaks, ranging to $25. For comprehensive overhauls, budget between $200 and over $600 depending on your pump model.
Can I run my pool without the pump?
No. The pump is the only source of circulation, filtration, and chemical distribution. Without the pump running, algae and bacteria can establish within 24-48 hours in warm weather. The filter can’t process debris. Run the pump a minimum of 8 hours per day during pool season.
Should I repair or replace my pool pump motor?
Replace the motor if it’s over 8-10 years old and has a major failure (bearing destruction, seized motor, burned windings). Repair if it’s under 6 years old with a known cause (bad capacitor, failed seal). A capacitor replacement at $15-$40 on a 4-year-old motor is always worth attempting before spending $300+ on a new motor.
